AXA Made in Germany
AXA quick-change steel holder set K11 (= Multifix A) consisting of 1 lathe tool holder head + 3 torsion steel holders 20/75 +1 drill steel holder
Item number A_K11_Set_75_20
EUR 505.95
*
Content
1 set
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping

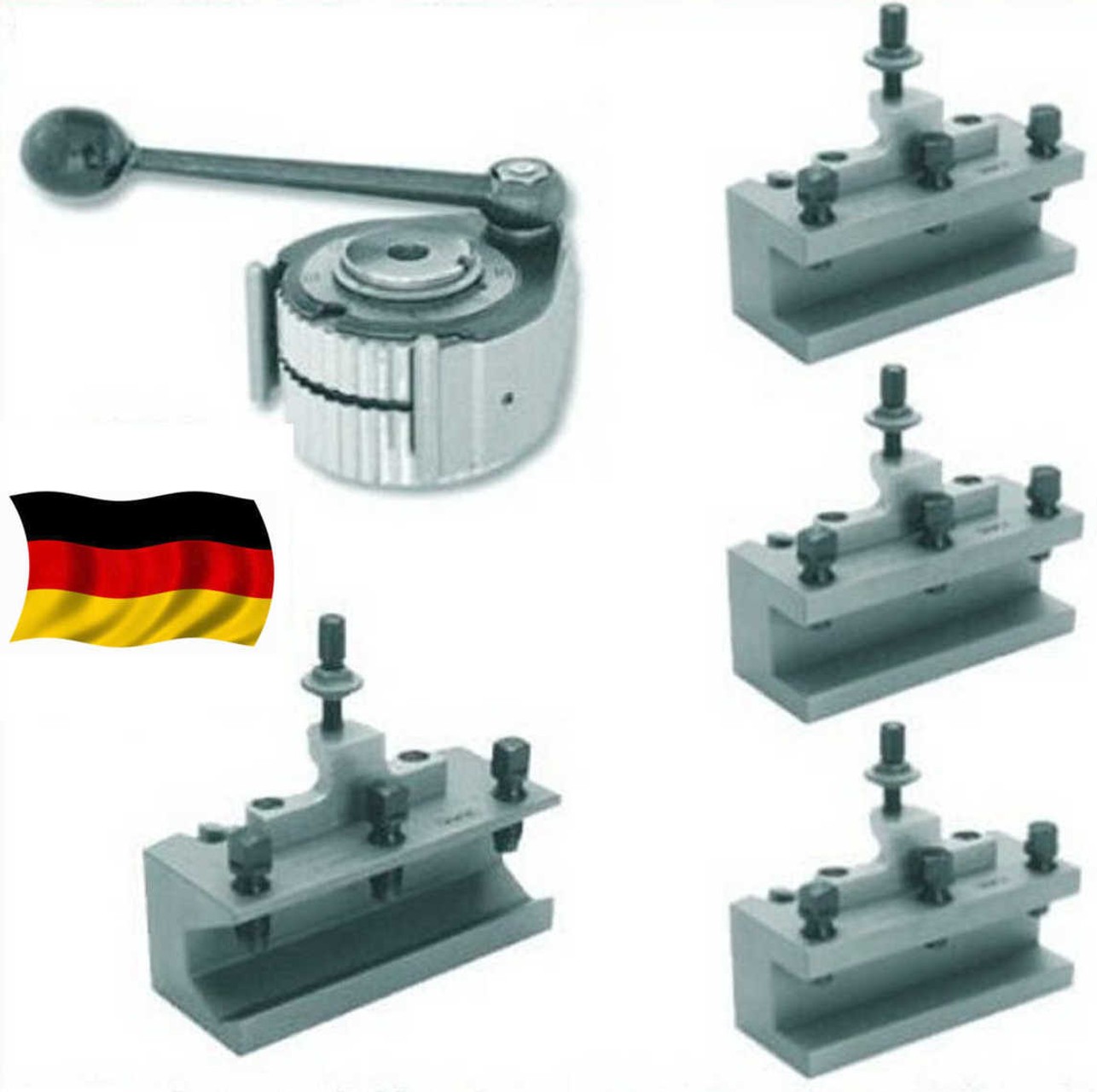

AXA quick-release steel holder set K11 (= Multifix size A)
consisting of:

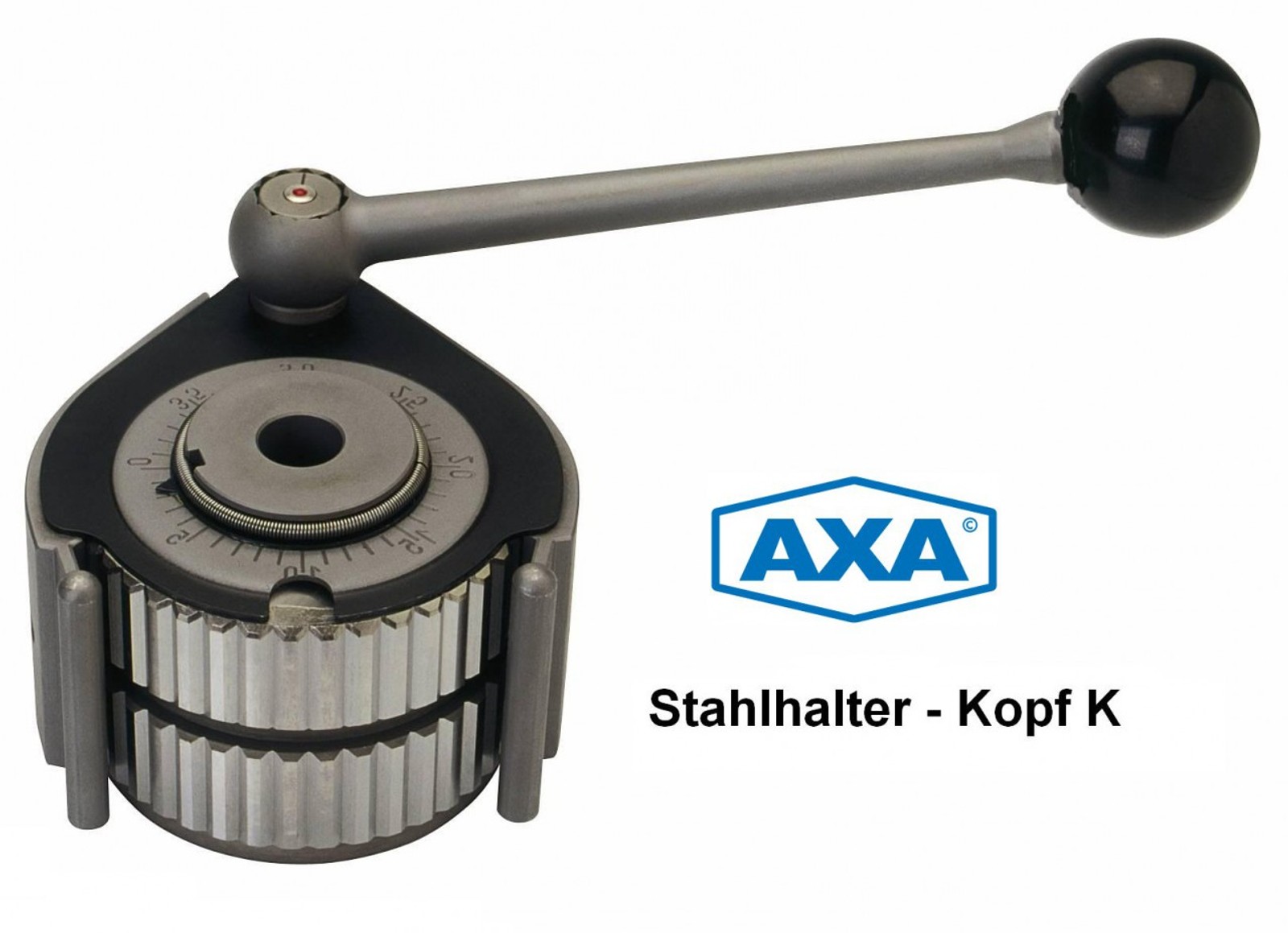

- 1 steel bracket base head K11 (= MULTIFIX size A)

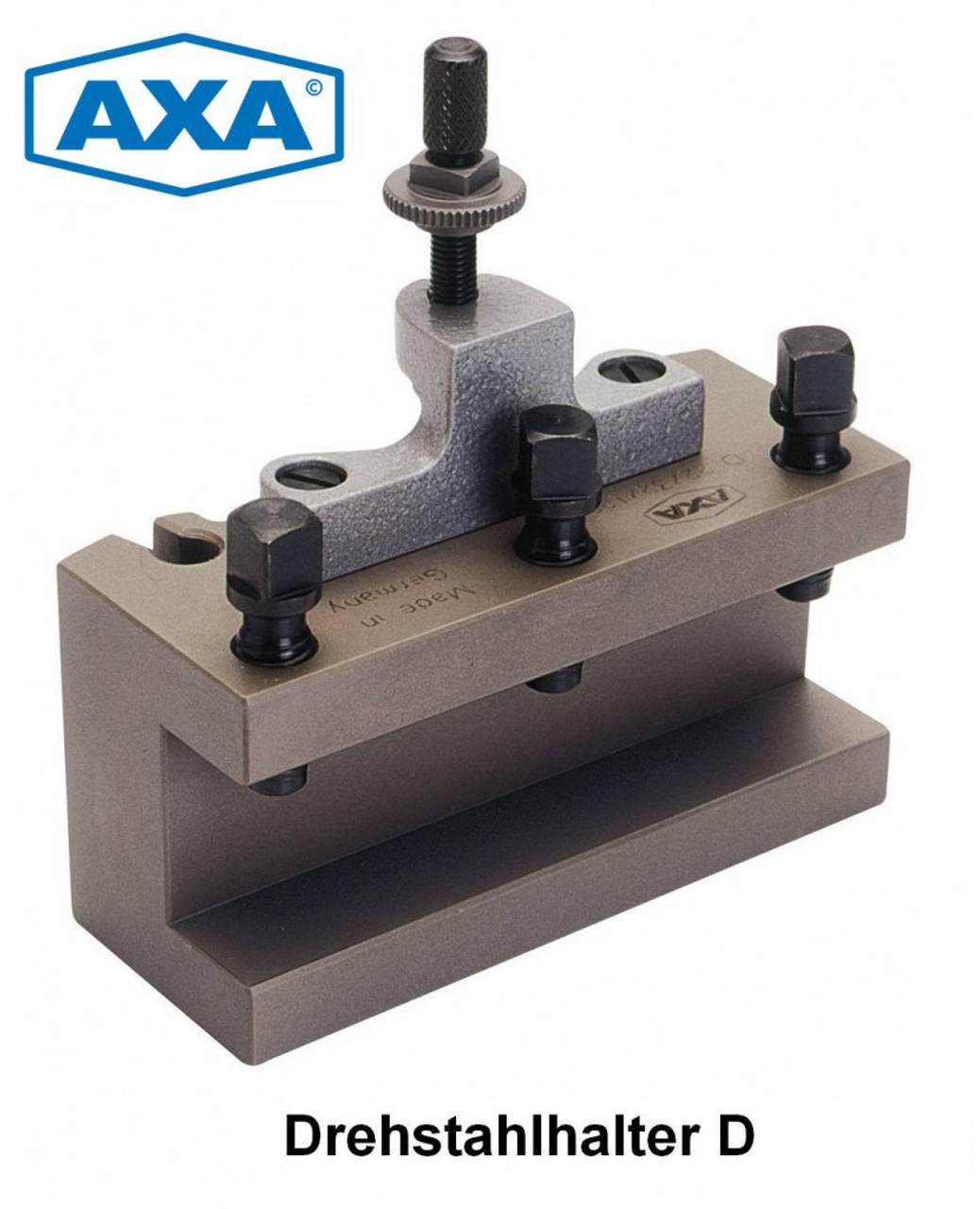

- 3 AXA quick-change lathe tool post D11/20/75 MULTIFIX AD 2075

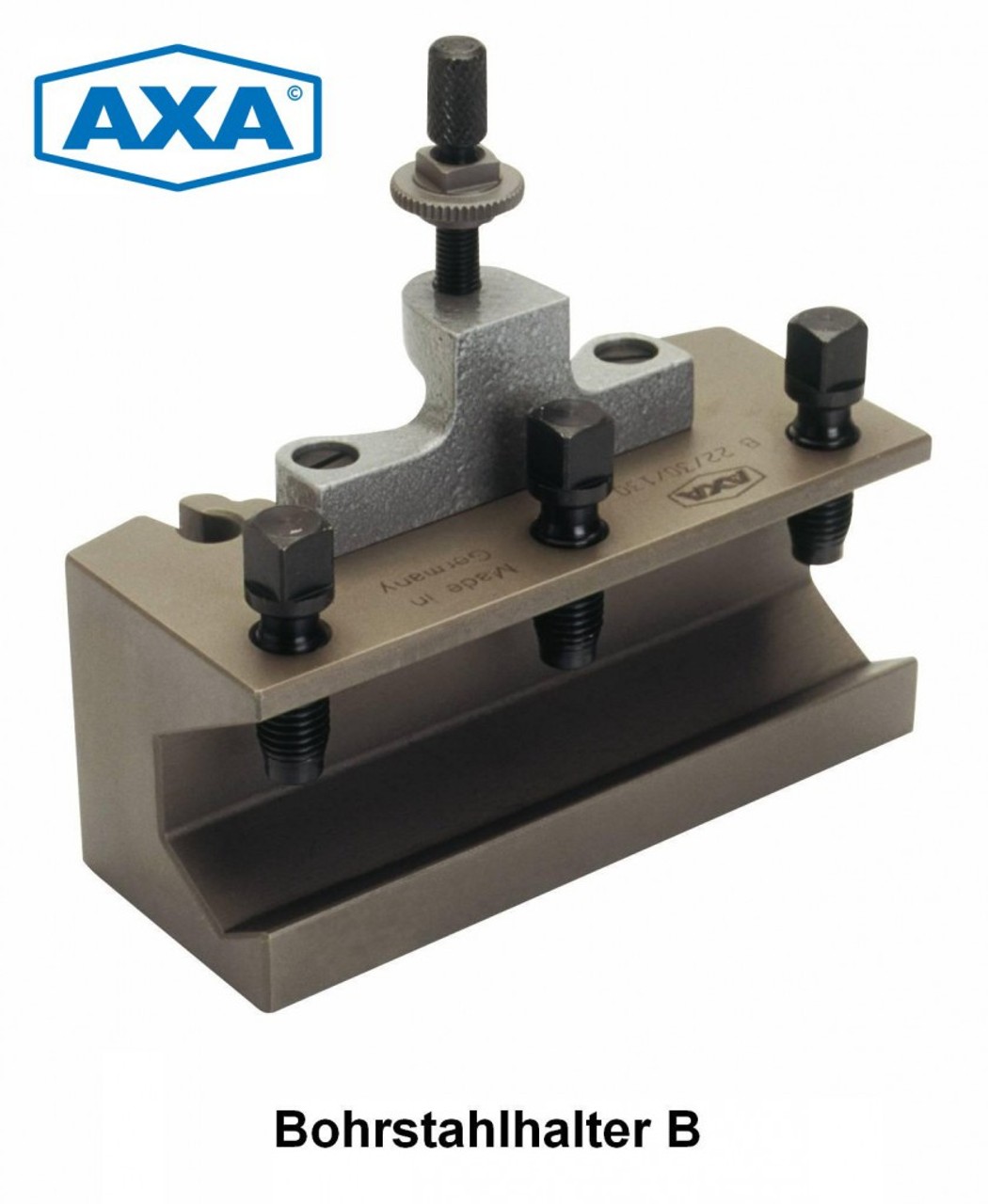

- 1 AXA quick-change drilling tool holder B11/20/85 MULTIFIX AH 2085
- Supplied with 1 socket spanner and 1 clamping lever

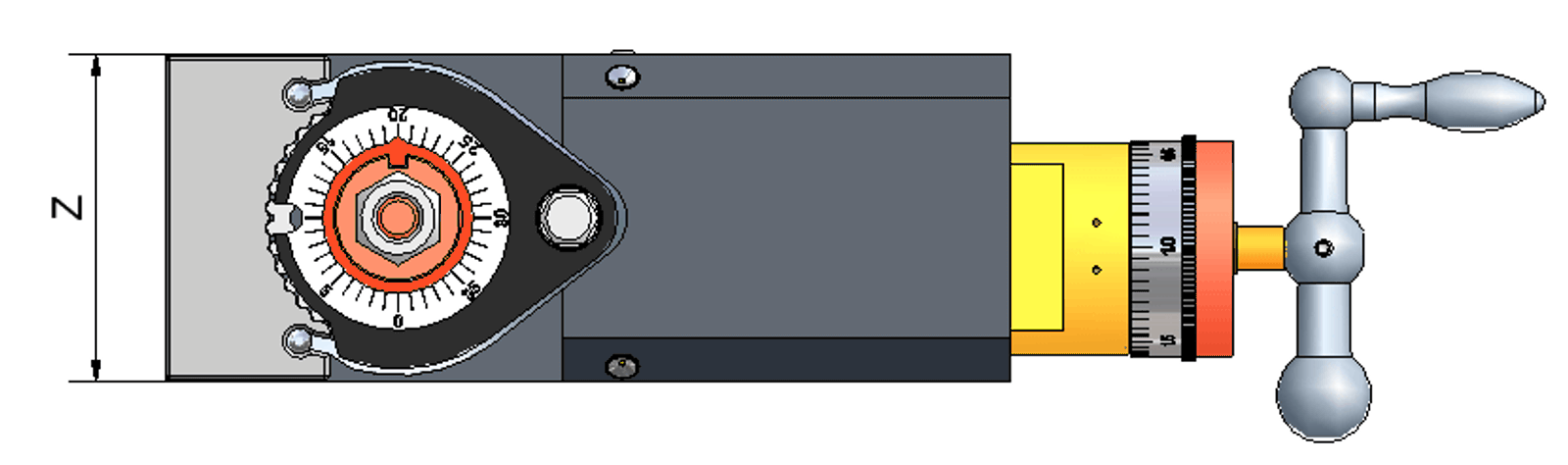

Size "K11" or "A" is for lathe drive power up to 2.2 KW and slide width max. 100mm

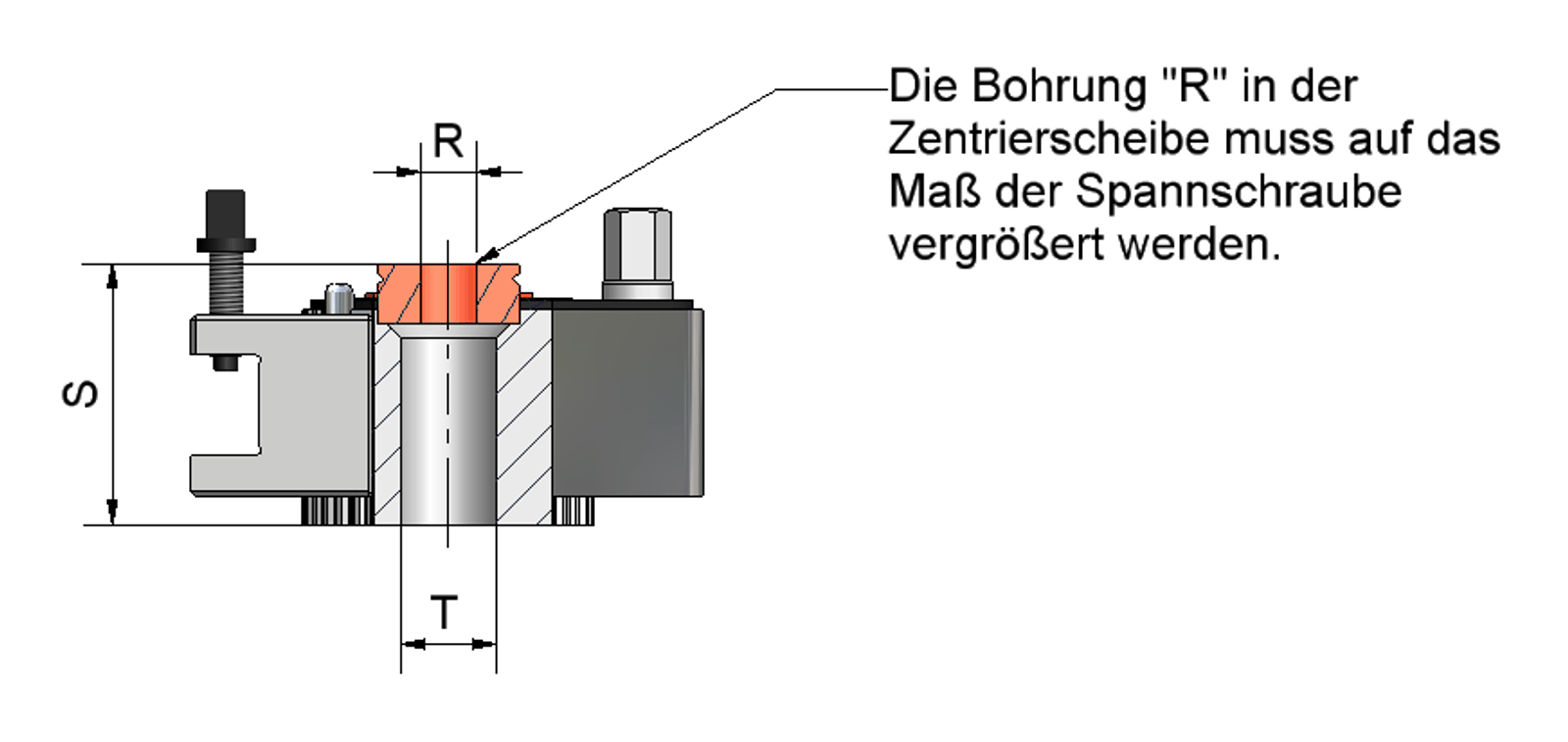

Mounting hole of the lathe tool holder head: 20mm (on request up to 35mm for an extra charge)
- lathe tool holder head and steel holder with hardened, profile-ground teeth
- therefore 40 different angle positions of the holdersare possible
- Backlash-free and repeatable clamping of the interchangeable holders
- 0.01 mm repeat accuracy
- Simple height adjustment of the steel holders via knurled screw with lock nut
- with angle scale on the head
- Almost every standard lathecan be equipped with this quick-change toolholder

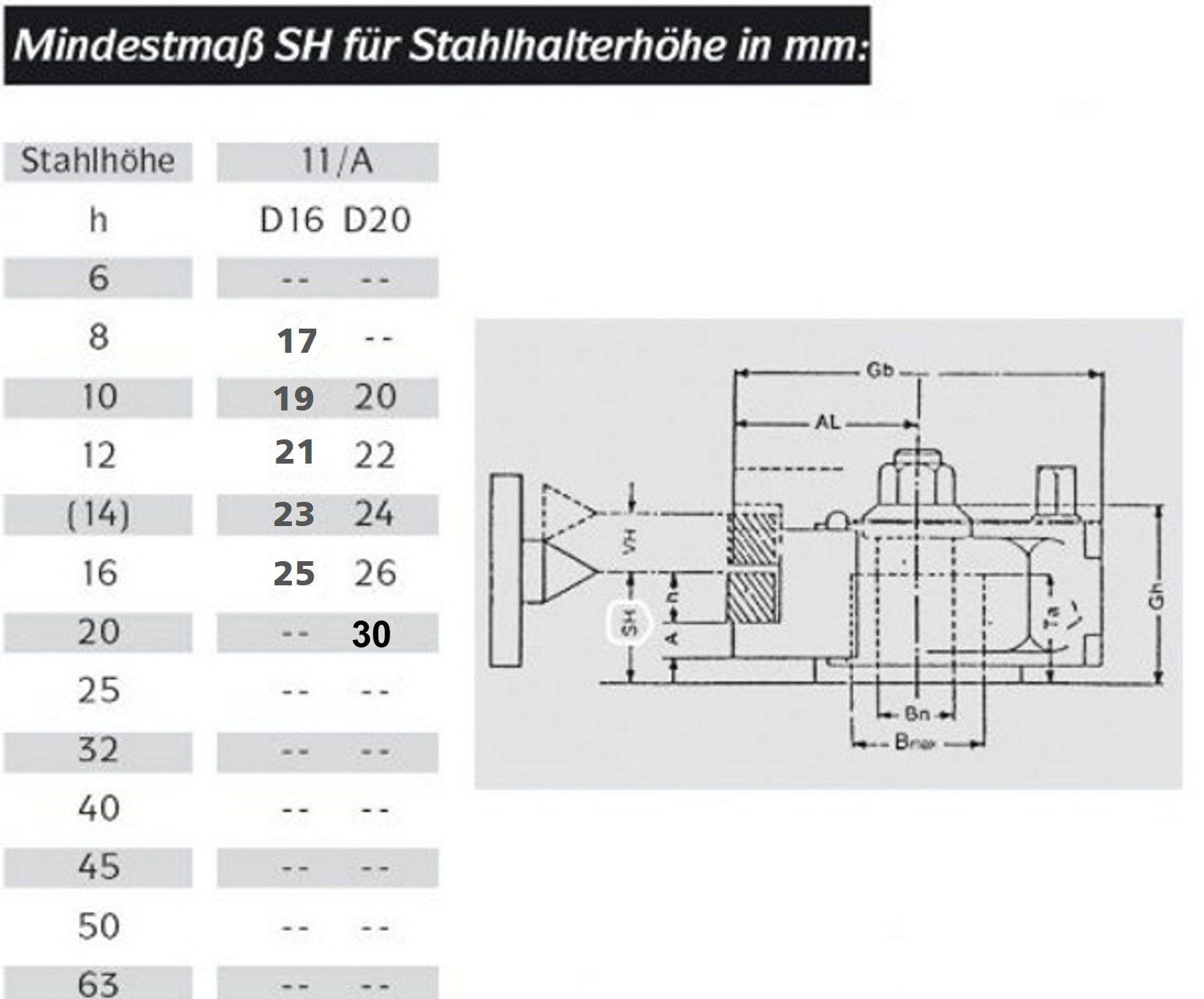

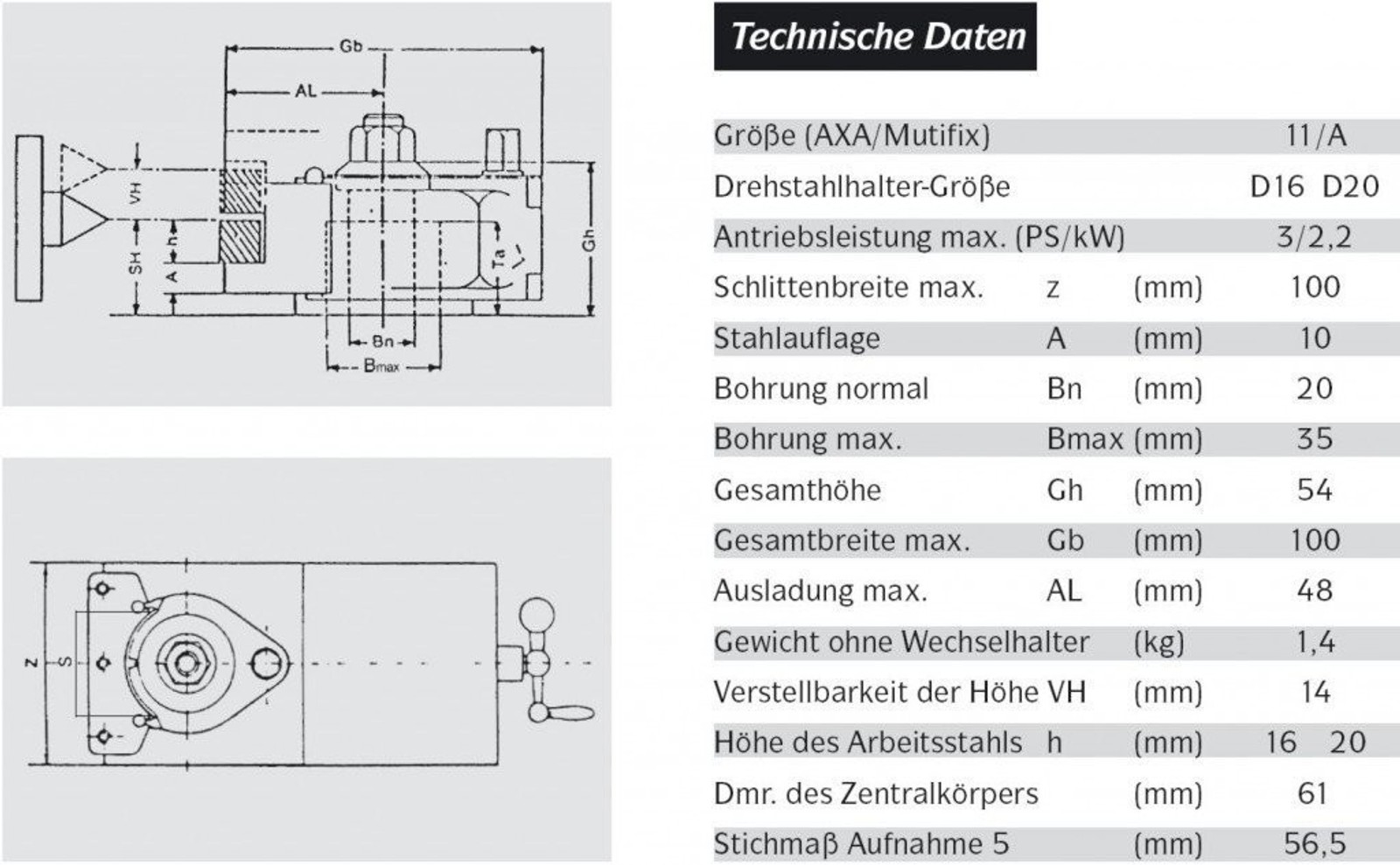

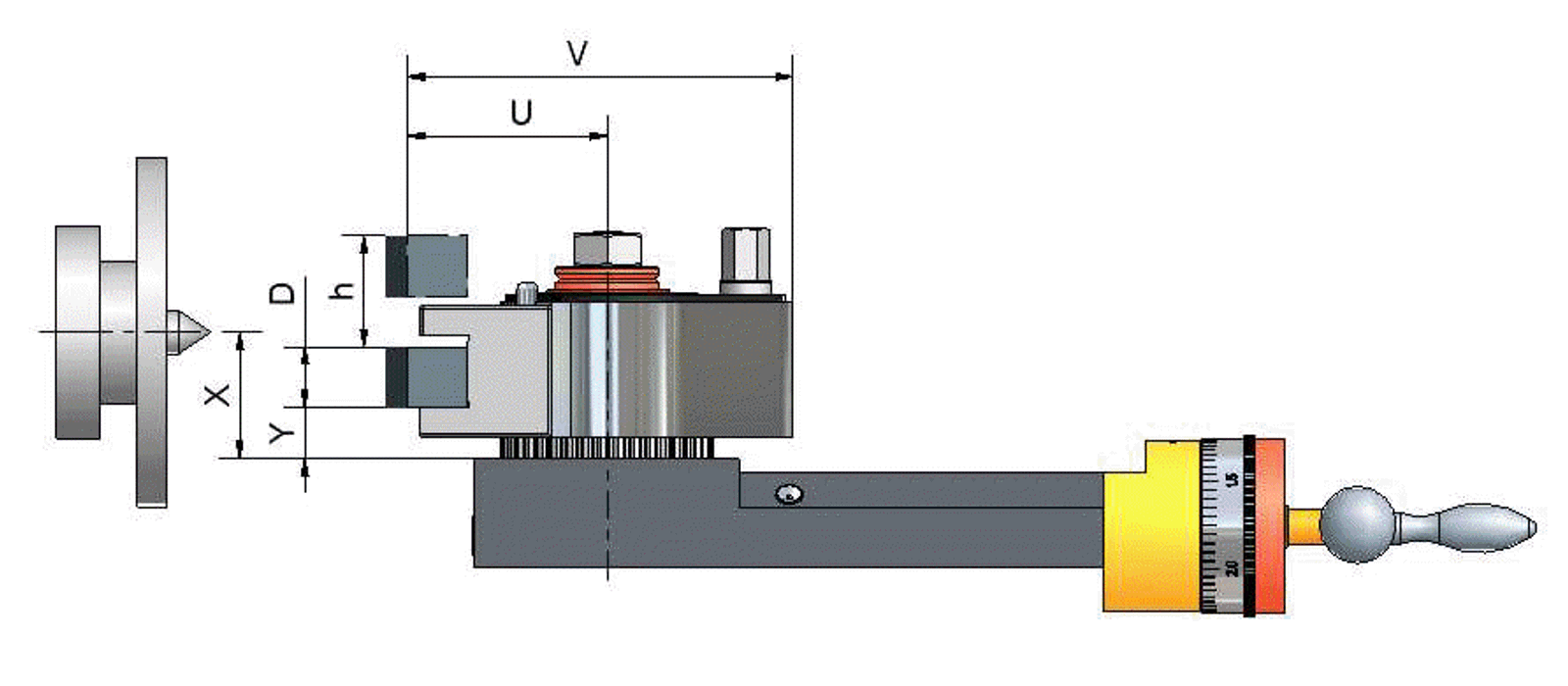

The technical data and dimensions with sketches for explanation can also be found in the photos
| Item ID | 1179 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | K11_Set_75_20 |
| Model | K11_Set_75_20 |
| Manufacturer | AXA Made in Germany |
| Manufacturing country | Germany |
| Content | 1 set |
| Weight | 4130 g |
| Net weight | 3690 g |
| Dimensions | 48×100×54mm |
